- Description

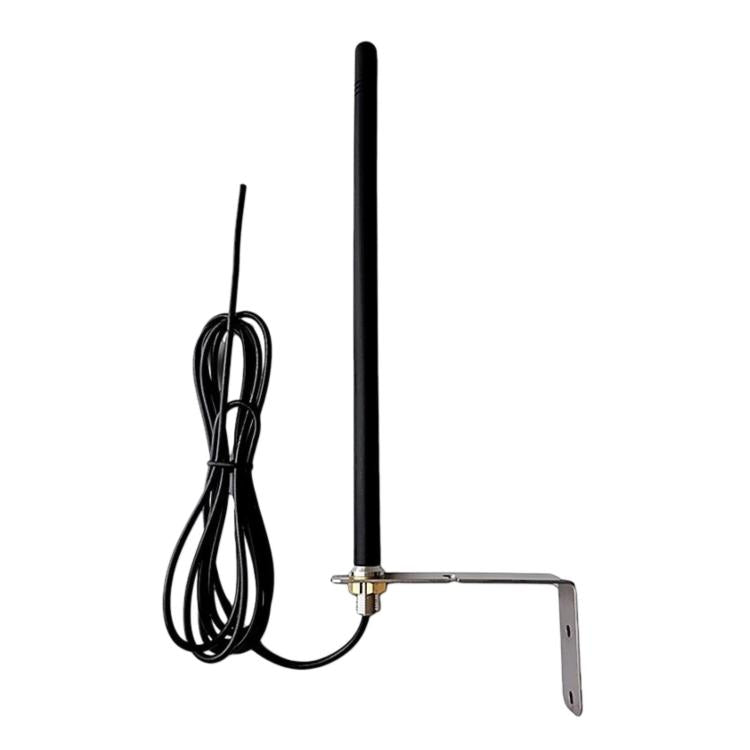

1. Frequency: 868 MHz
2. Bandwidth: 10 MHz
3. VSWR (Voltage Standing Wave Ratio) is less than or equal to 1.5
4. Gain: 3 dBi
5. Maximum input power: 20 W
6. Input impedance: 50 ohms
7. Polarization mode: vertical polarization

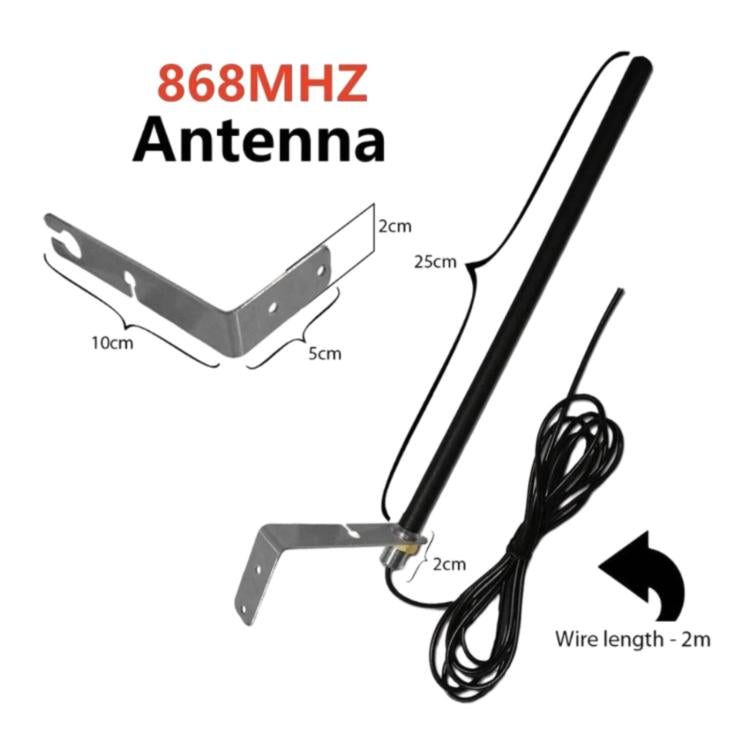

8. Antenna length: 250 mm
9. Cable type: RG174
10. Impedance: 50 ohms
11. Installation method: screw fixation (wall-mounted)
12. Wide range of applications: garage doors, electronic doors, gates, sliding doors, automatic doors, rolling shutters, blinds, household appliances/household smart devices, such as lighting systems, alarm systems, access control systems

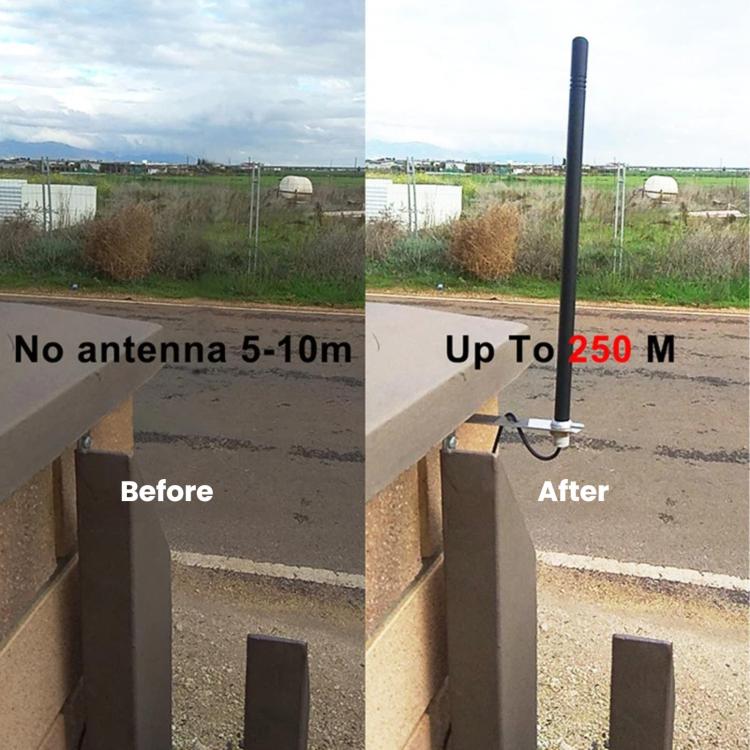

13. Suitable for extending the range of all 868 MHz remote controllers
14. Materials: ABS, metal
15. Bracket material: stainless steel
16. Cable length: 2 meters
Specification:
