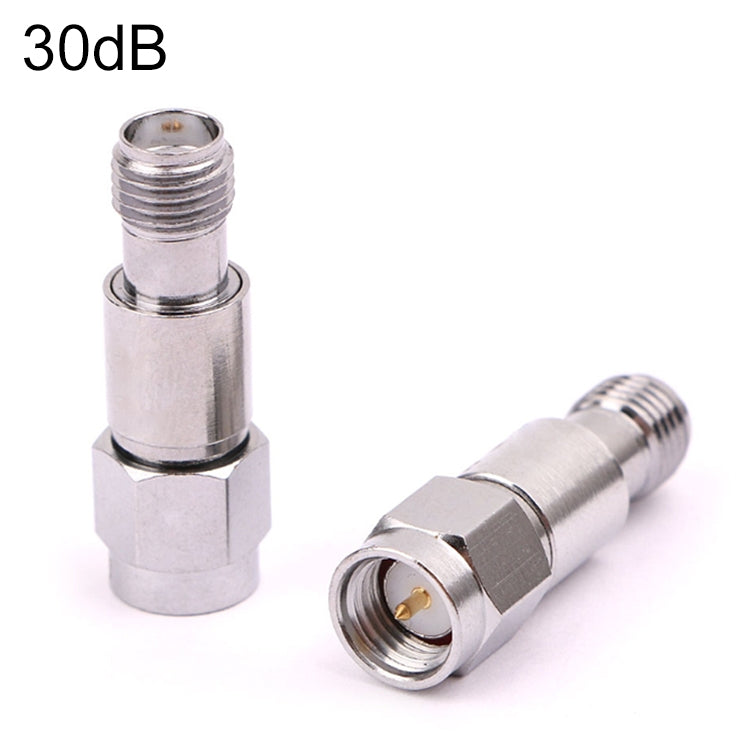

30dBi SMA Attenuator DC-6GHz SMA Coaxial Fixed Connectors
30dBi SMA Attenuator DC-6GHz SMA Coaxial Fixed Connectors
Normaler Preis
$3.89 USD
Normaler Preis
Verkaufspreis
$3.89 USD
Grundpreis
/
pro
Versand wird beim Checkout berechnet
Verfügbarkeit für Abholungen konnte nicht geladen werden
Features:
1. Useful in a wide variety of applications including impedance matching and level control.
2. With diffrent attenuation values of fixed attenuator to be chosen from. Good quality, rugged construction.
3. Suitable for microwave equipment, electronic equipment or communication systems. The use of features frequency bandwidth, low standing wave, power, stable performance.
4. It can promote your work efficiently.
Specification:
1. Materila: stainless steel
2. Power: 2W
3. Frequency Range: DC-6GHz
4. Impedance: 50 ohm
5. tanding-wave ratio (SWR): <=1.20
6. Connector Type: SMA-J ~ SMA-K
7. perating Temperature: -20~115 degrees Celsius

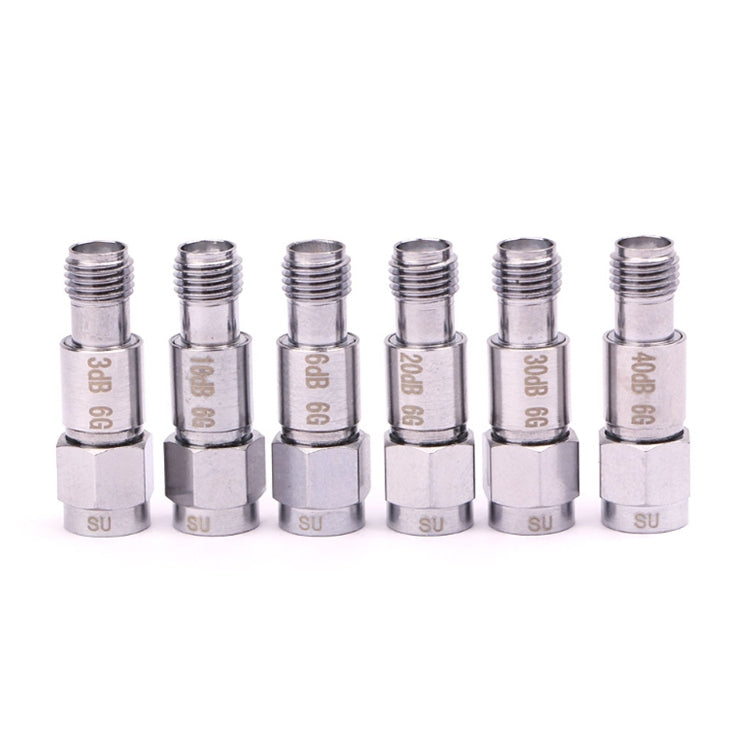

8. Attenuation: 60dB/50dB/40dB/30dB/25dB/20dB/10dB/6dB/5dB/3dB/2dB/1dB
9. Attenuation Range: +/-0.5dB; 30+/-0.8dB; 40-50dB+/-1.5dB; 60dB+/-1.8dB

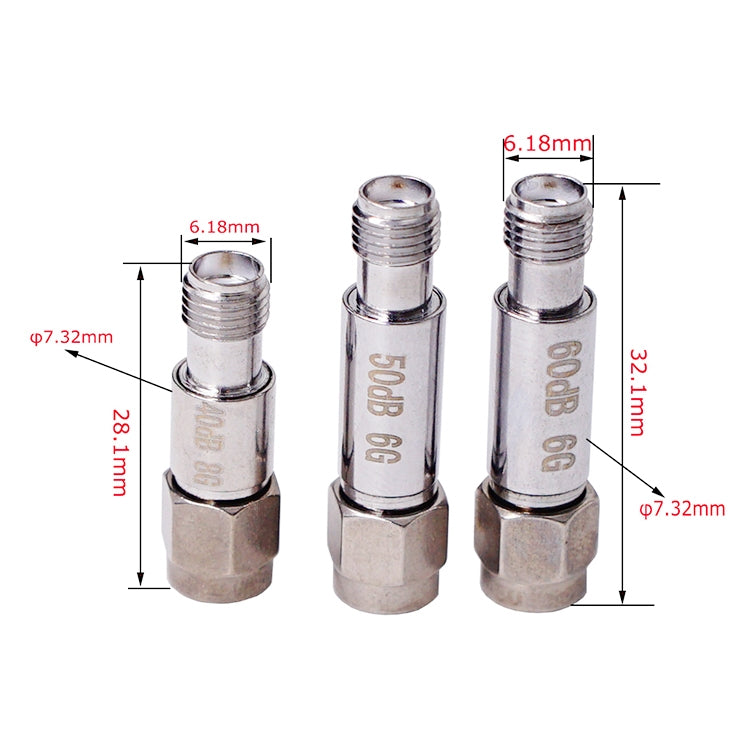

10. Size: 1dB~40dB app.28.1x9.1mm 50dB/60dB app.32.1x9.1mm
1. Useful in a wide variety of applications including impedance matching and level control.
2. With diffrent attenuation values of fixed attenuator to be chosen from. Good quality, rugged construction.
3. Suitable for microwave equipment, electronic equipment or communication systems. The use of features frequency bandwidth, low standing wave, power, stable performance.
4. It can promote your work efficiently.
Specification:
1. Materila: stainless steel
2. Power: 2W
3. Frequency Range: DC-6GHz
4. Impedance: 50 ohm
5. tanding-wave ratio (SWR): <=1.20
6. Connector Type: SMA-J ~ SMA-K
7. perating Temperature: -20~115 degrees Celsius
8. Attenuation: 60dB/50dB/40dB/30dB/25dB/20dB/10dB/6dB/5dB/3dB/2dB/1dB
9. Attenuation Range: +/-0.5dB; 30+/-0.8dB; 40-50dB+/-1.5dB; 60dB+/-1.8dB
10. Size: 1dB~40dB app.28.1x9.1mm 50dB/60dB app.32.1x9.1mm
Specification:
| Package Weight |
|
